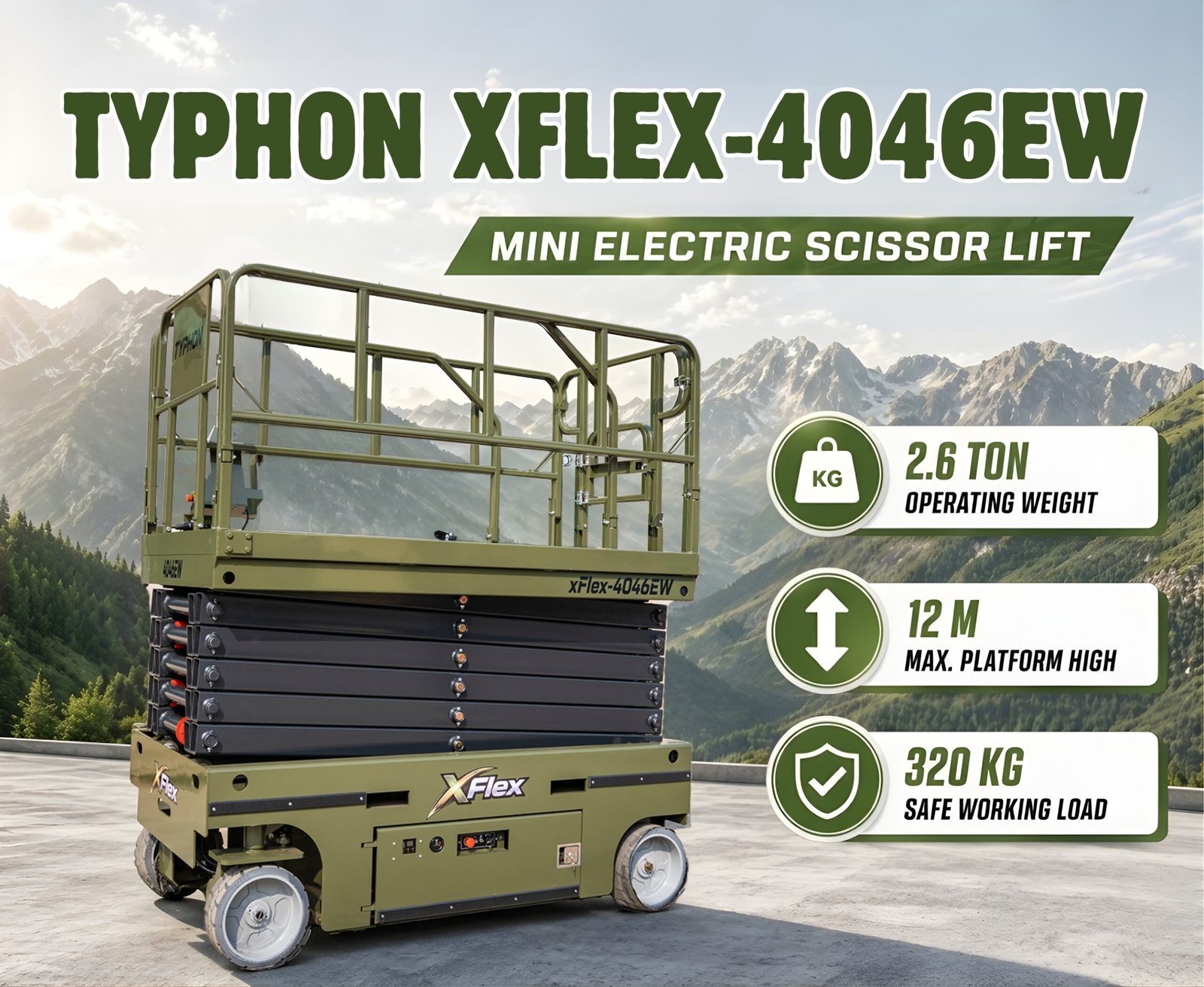

TYPHON XFLEX-4046EW

The TYPHON XFLEX-4046EW combines a compact footprint with high-reach capabilities to meet the demands of modern construction and facility maintenance. Engineered for stability and precision, this 2.6-ton electric lift provides a secure environment for elevated tasks at heights of up to 12 M.

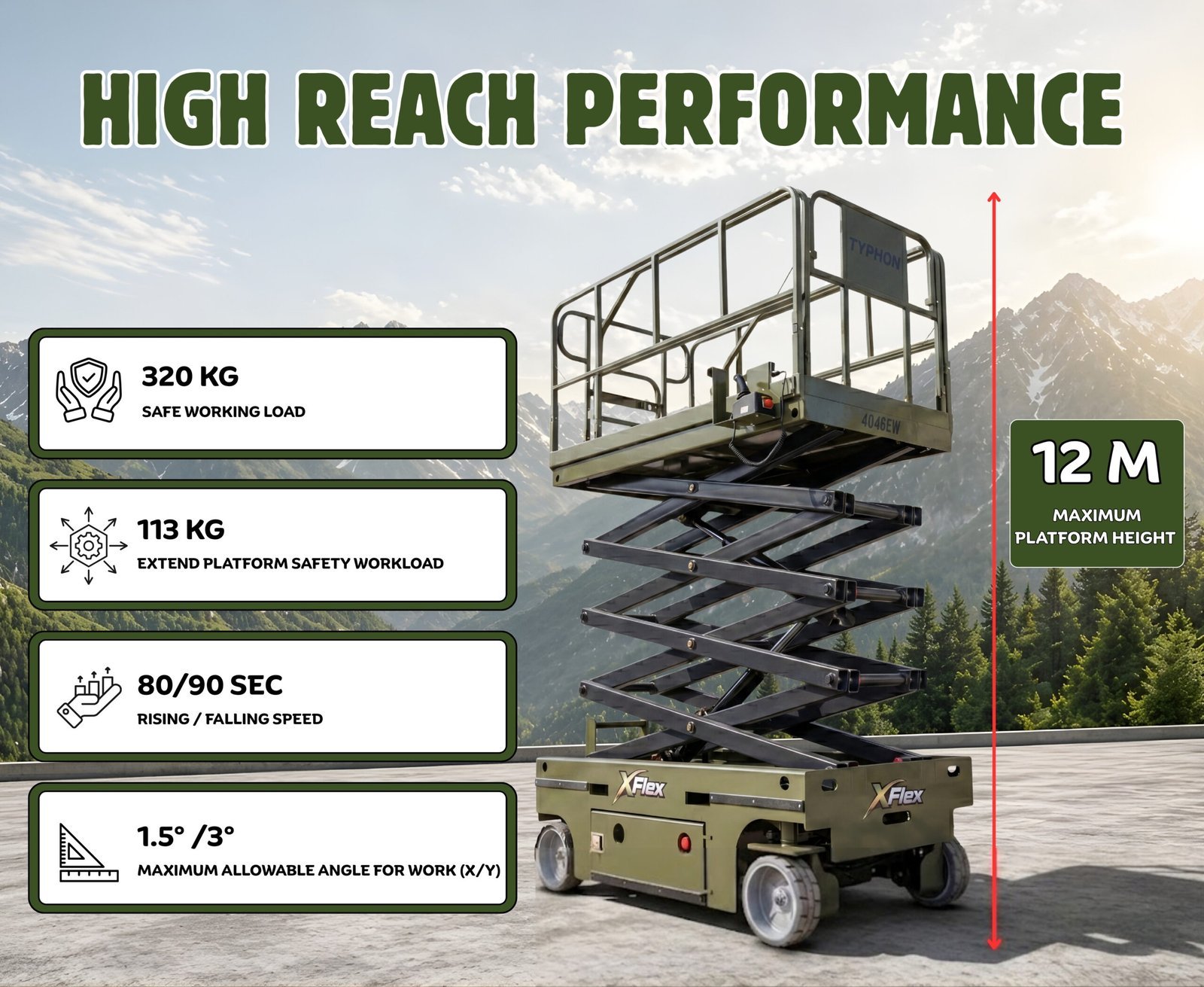

Superior Performance & Reach

• High-Reach Capability: Features a 12 M maximum platform height and an 80/90 second rising/falling speed.

• Generous Capacity: Offers a 320 KG safe working load on a 2300 mm platform, with a dedicated 113 KG capacity for the extendable platform.

• Operational Precision: Built to maintain stability with a maximum allowable work angle of 1.5° / 3° (X/Y).

Advanced Power & Control Systems

• Heavy-Duty Power: Driven by a high-torque 24V / 4.5kW lifting and drive motor.

• Robust Battery Life: Powered by a 6V200Ah*4 storage battery bank and includes a high-capacity 24V/30A charger for minimized downtime.

• Intelligent Operation: The intelligent control system enables easy one-person operation and automatic walking angle adjustments for smooth, precise movement.

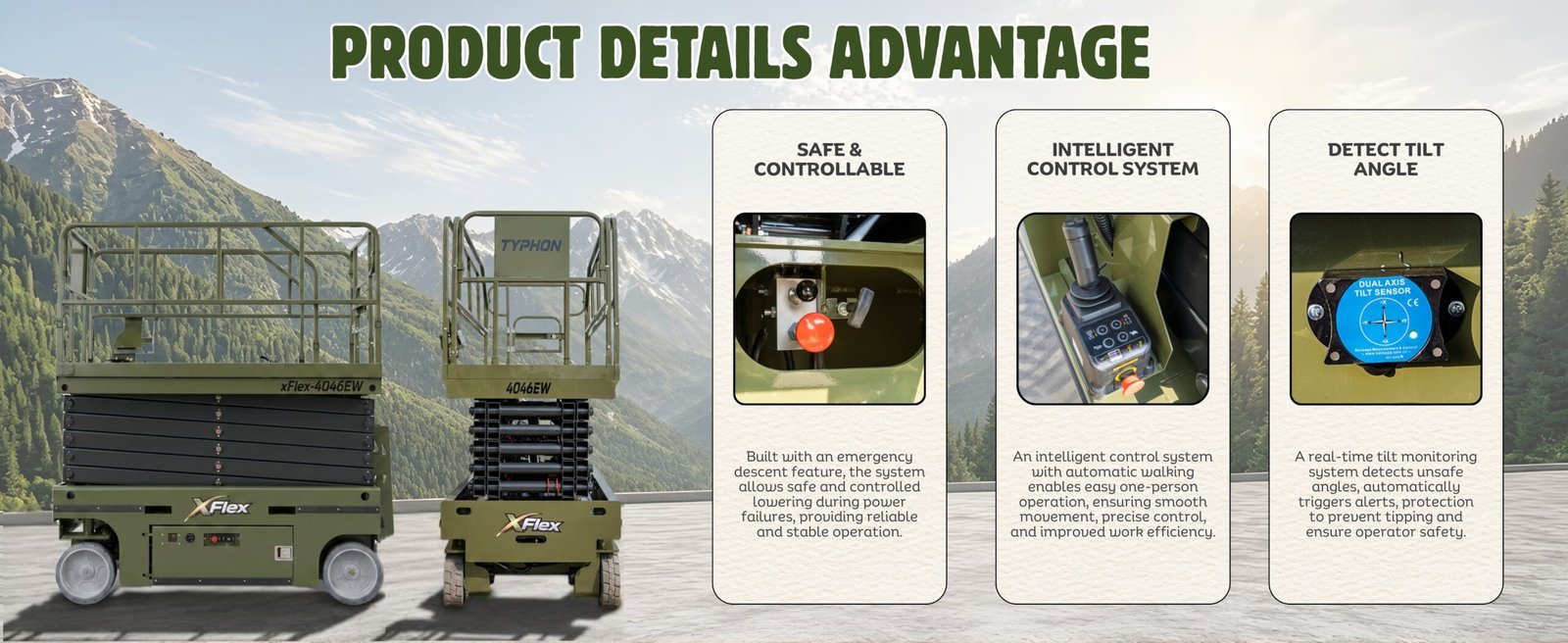

Safety-First Engineering

• Real-Time Monitoring: Equipped with a dual-axis tilt sensor that monitors unsafe angles in real time, automatically triggering alerts to prevent tipping.

• Controlled Descent: Features an emergency descent system that allows for a safe and controlled lowering of the platform even during total power failures.

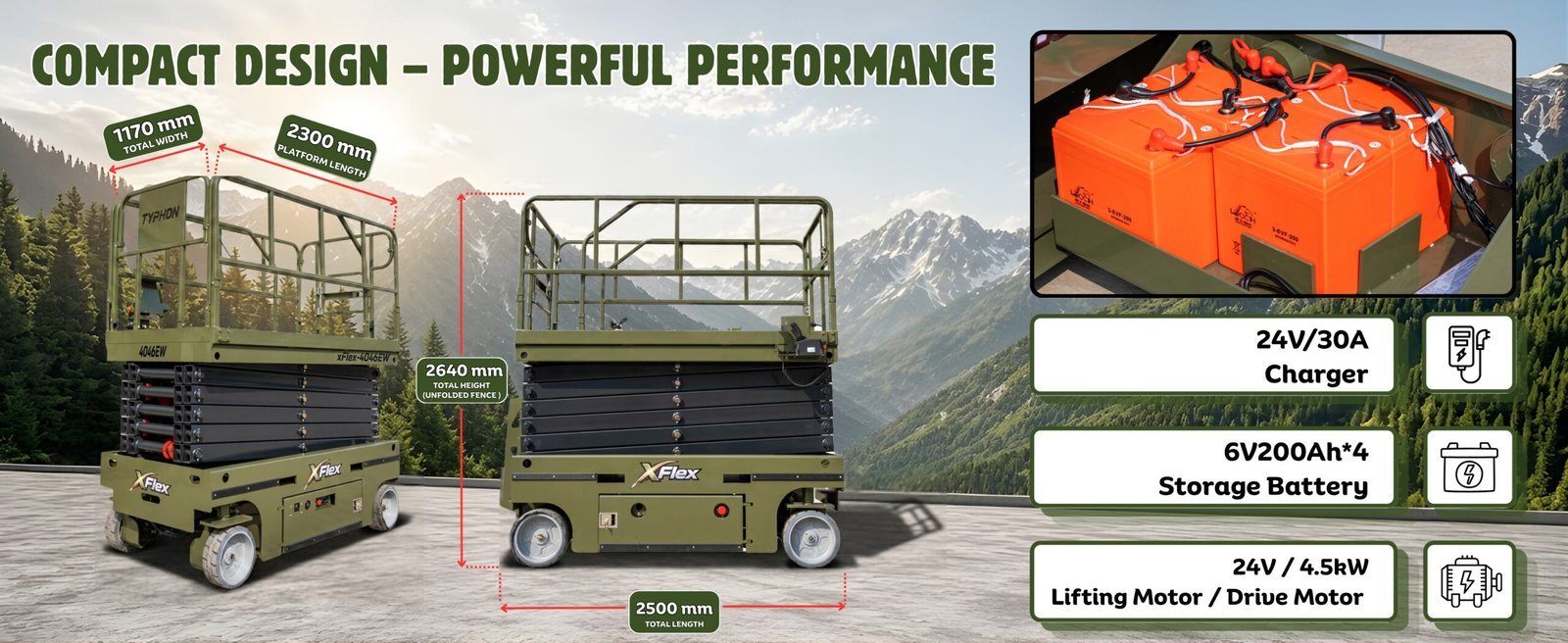

• Compact Design: With a total width of 1170 mm and a length of 2500 mm, it is designed to navigate restricted spaces while maintaining a stable operating base.

  Technical Specifications

  Category	Specification
  Model	TYPHON XFLEX-4046EW
  Operating Weight	2.6 ton / 5,732 lbs
  Safe Working Load (SWL)	320 kg
  Maximum Platform Height	12 m
  Platform Size (L x W)	2300 x 1170 mm
  Total Width	1170 mm
  Total Length	2500 mm
  Extendable Platform	90 cm extension
  Rising / Falling Speed	80 / 90 seconds
  Storage Battery	6V 200Ah x 4
  Lifting / Drive Motor	24V / 4.5 kW

  ---

  Feature Details & Advantages

  • High-Reach Performance: Reaches a maximum platform height of 12 m with stable vertical lifting.



  • Extendable Workspace: Includes a 90 cm telescopic platform extension that improves reach without needing to move the machine.



  • Intelligent Control System: Supports precise, one-person operation and automatic walking for improved site efficiency.



  • Safety Monitoring: Features real-time tilt angle detection (1.5° X / 3° Y) to identify unsafe operating conditions.



  • Emergency Controls: Equipped with an emergency descent function to allow safe, controlled lowering during power failures.



  • Durable Chassis: Built on an 8 mm thick steel plate platform chassis for a heavy-duty, reliable base.



  • Battery Efficiency: Powered by a 24V system using four 6V 200Ah batteries and a 24V/30A charging system.



  • Operator Capacity: Designed to support a maximum of two employees on the platform.



  • Compact Body: The 2500 mm total length and 1170 mm width allow it to navigate restricted indoor environments.
