TYPHON STOMP 509 25HP Kubota D1105 1.4 Ton EPA Skid Steer Loader Brand New USA

The TYPHON STOMP 509 is small in stature, but a giant in output. This 3100 lb skid-steer loader remains small enough to get in tight spots, yet sturdy enough to get any job done. This agile little workhorse is This well-suited size for scooting through narrow doorways, corridors, small paths and gates, and for working under restricted overhead clearance. It’s the perfect loader whenever the job is too big for a shovel or the space is too small for a larger machine.Behind This controls, you’ll effectively complete rigorous work where other machines struggle or can’t go.

Sporting an EPA approved Kubota D1105 3-cylinder, indirect injection diesel engine packed with 25 HP of power, the TYPHON STOMP 509 remains your well-suited workhorse to get light-duty projects done. The Kubota D1105 is vertical, water cooled 4-cycle diesel engine; it packs a power of 25 HP at 3000 RPM and 19 HP at 2200 RPM.

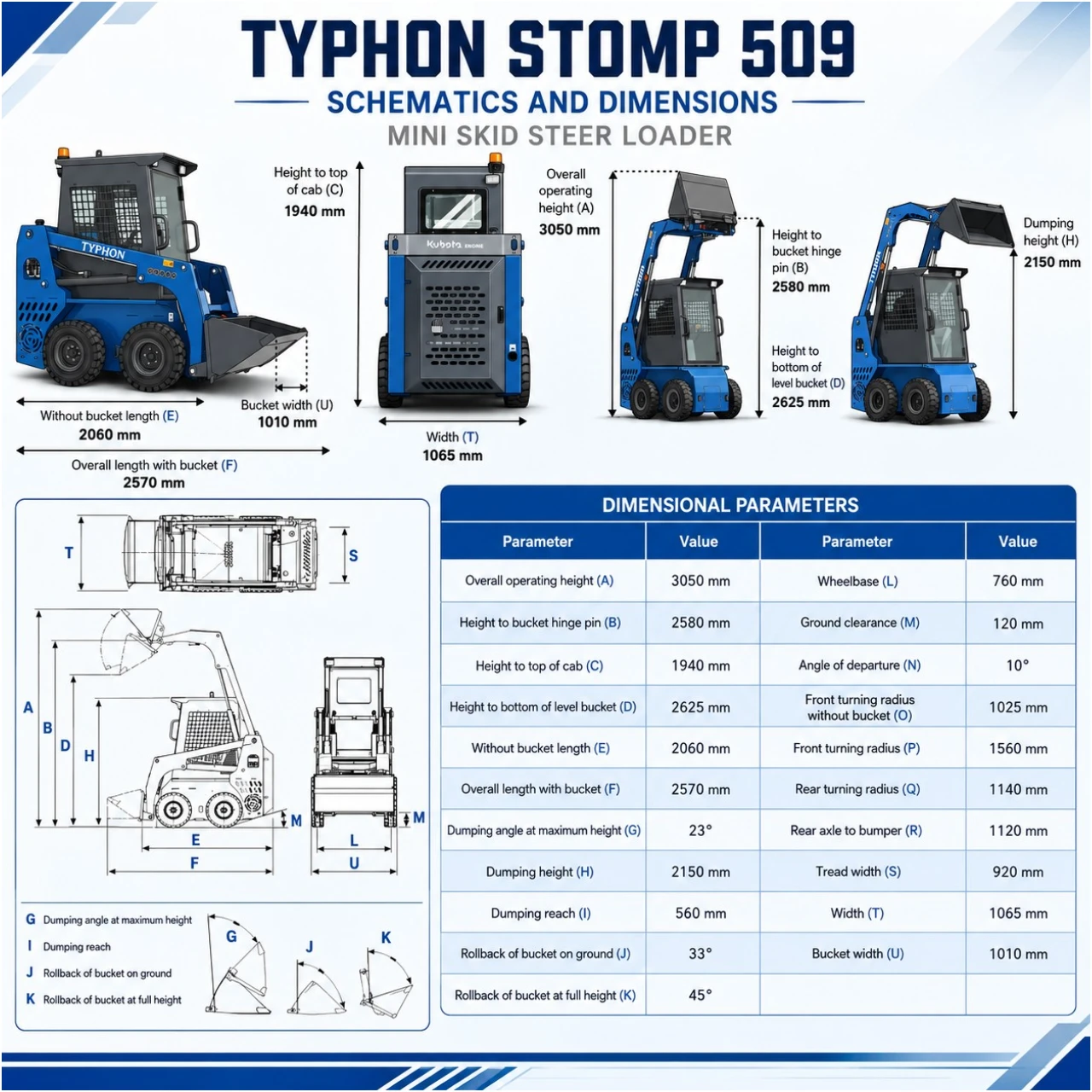

The TYPHON STOMP 509 has an operational weight of 1.4 ton and a transport length of 8.43 ft with bucket. This bucket width remains 39.8 in, and the highest unloading height is 7.05 ft. With a dump attain of 22 in and dump angle of 33 degrees on the ground and a dump angle of 45 degrees at the highest point, the skid steer sports a radial lift height of 10.01 ft and a height to bucket pin of 8.46 ft.

It has a travel speed of 5.59 MPH, with a transport width and height of 41.9 in and 6.36 ft, respectively. This rated operating capacity of the construction machine is 840lbs at the highest point.

STOMP 509 brings Zero-turn capability. It pivots 360° within its own body length without any extra forward/reverse movement. This promotes the STOMP to turn sharply around obstacles in tight worksite spaces.

Using a bucket width of 40 inches (39.8 in), this STOMP 509 scoops, lifts, and transports materials on a job-site using its large front-mounted bucket. This makes the STOMP essential for duties like loading dump trucks, moving large quantities of sand, gravel, or debris, and performing site preparation and cleanup. With specialized implements, the STOMP can perform duties like digging, loading, grading, demolition, snow-blowing and landscaping.

Using a widened interior cabin width of 27.6 in, this STOMP 509 is able to accommodate a large operator comfortably. An improved pilot control system promotes for sensitive control and quick responses when operating the STOMP.

With wear-resistant and anti-slip tires, your STOMP 509 will be your trustworthy workhorse for the duties on hand.

Great made for ：

• Construction engineering: waste cleaning, building materials handling, plus adapting to narrow space operations.
• Road maintenance: road maintenance, line marking operations, plus improving maintenance performance.
• Airport management: runway maintenance, machinery assistance, to promote controlled airport handling.
• Landscaping: tree pruning, lawn maintenance, plus creating beautiful landscapes.

Key functions

• Maneuverability: Driven on wheels, making it different from tracked vehicles like bulldozers.
• Lifting arm and bucket: Uses a hydraulic arm to lift and lower a large bucket at This front to scoop up and carry materials.
• Material handling: Can load, carry, plus dump a multiple materials, such as soil, rock, sand, and demolition debris.
• Versatility: Different implements can be hitched to a wheel loader, making it ready made for a variety of assignments.
