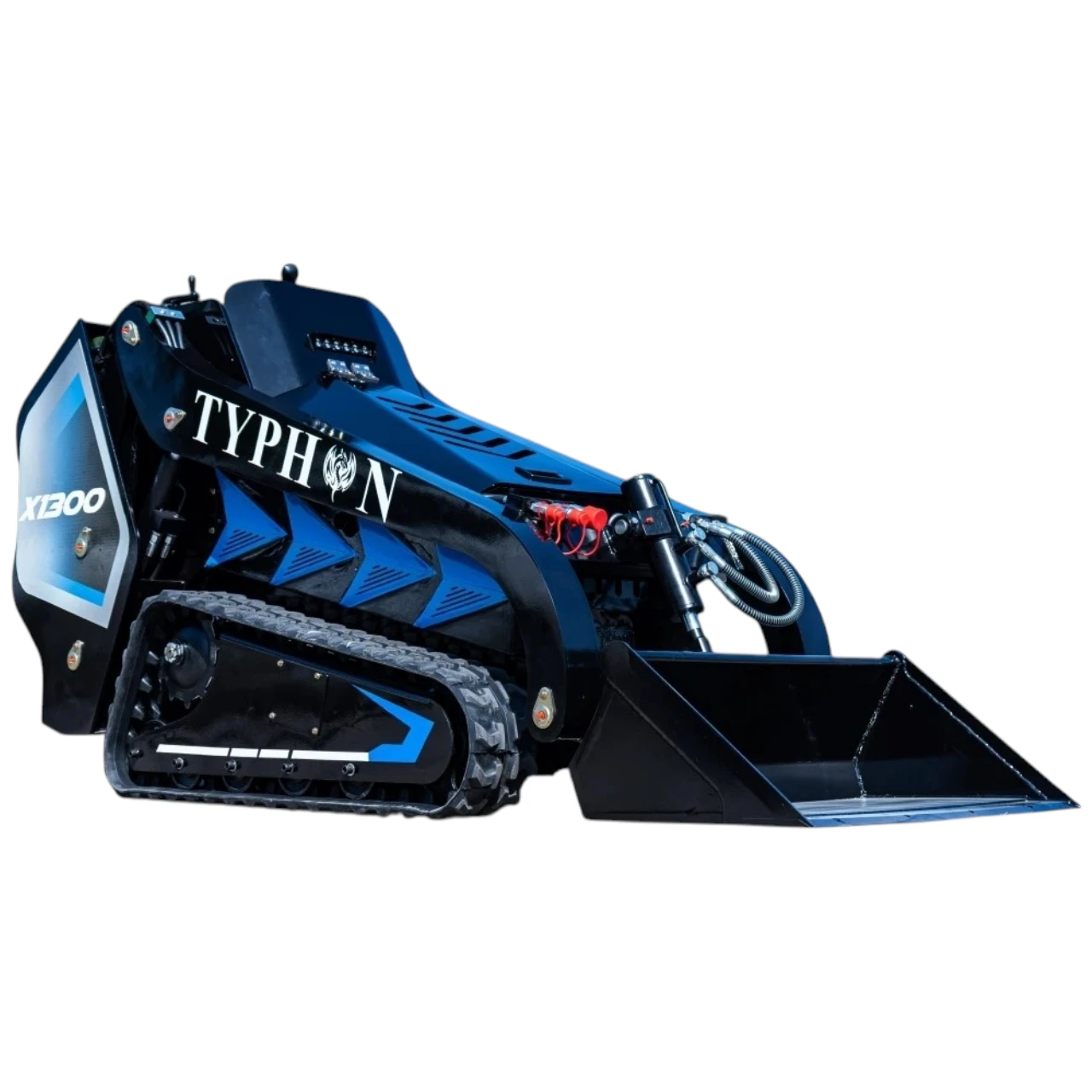

3040lbs TYPHON STOMP X1300 25HP Kubota D1105 EPA Diesel Mini Skid Steer Loader

Put the compact-footprint power of the TYPHON STOMP X1300 Mini Skid Steer Loader, a multi-purpose and dependable option for small building projects. Made for easy maneuverability in tight worksite zones, this 3040lbs skid steer loader is created to handle multiple applications with operating output. From digging and drilling to bull-dozing and landscaping, the TYPHON STOMP X1300 supplies exceptional output in a compact-footprint economical package.

Explore the robust and efficient TYPHON STOMP X1300 compact-footprint skid steer loader with advanced hydraulic systems and high-end Kubota D1105 engine for optimized output.

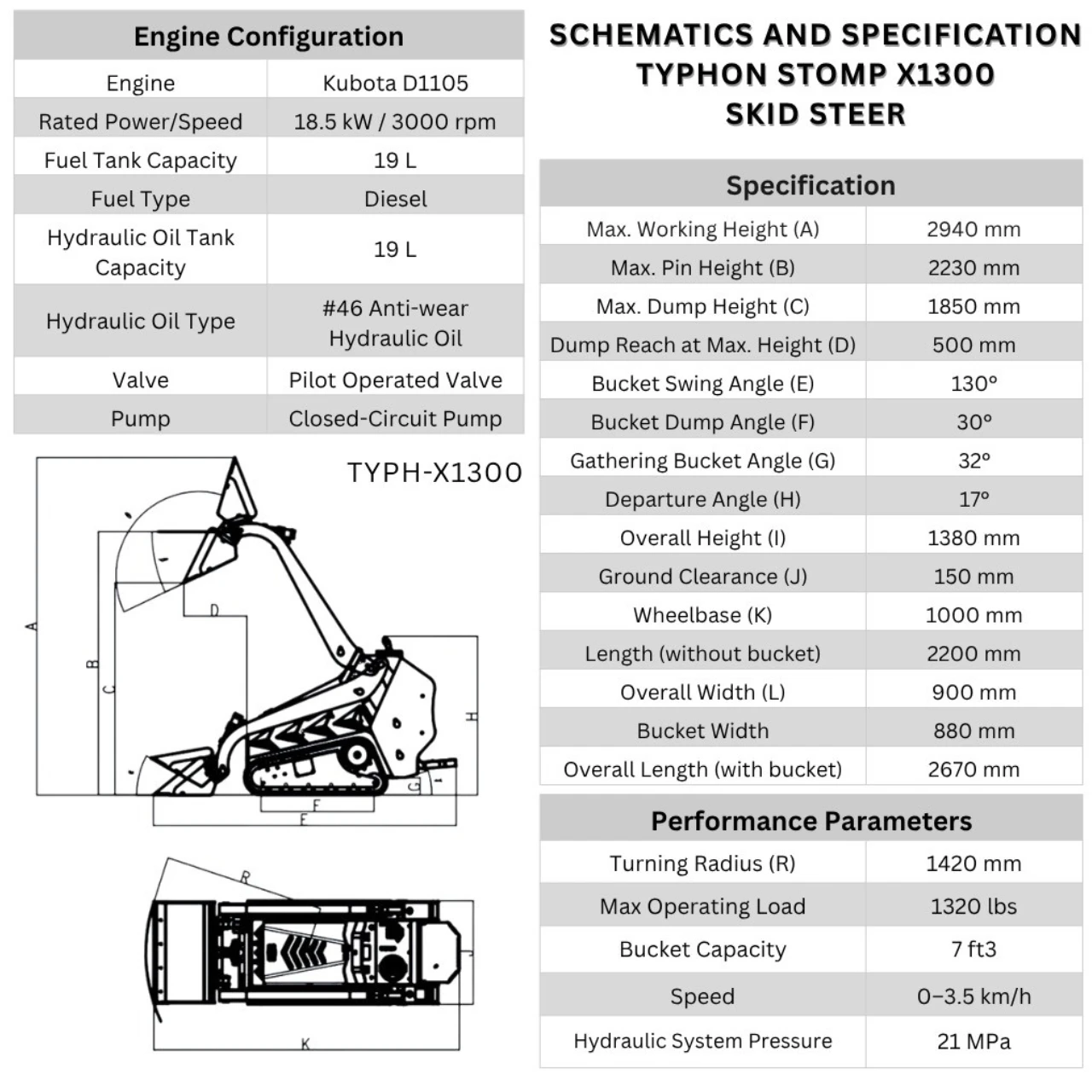

The TYPHON STOMP X1300 is a compact-footprint mini loader developed with ingenuity and robust functionality, showcasing a body width of only 35.4 in for agility in narrow spaces. Its boom delivers a Vertical Lift design, with high pin height 7.72 ft, enabling loading onto high-sided trucks.

TYPHON STOMP Mini Skid Steer Loader Main Machinery Benefits

1. compact-footprint Design for Small Projects

• Specially task-made for small building projects, supporting easy manoeuvrability.
• A robust choice made for farms, gardens, public spaces, parks, orchards, and more.

2. Multi-purpose Applications

• A functional choice made for drilling, digging, grabbing, bull-dozing, ditch-cleaning, small excavations, rock-breaking, landscaping, and construction purposes.

3. compact-footprint Yet Robust

• Delivers an EPA certified Japanese Kubota D1105 (25HP). for controlled functionality.A vertical, water cooled 4-cycle diesel engine, Kubota D1105 packs a power of 25 HP at 3000 RPM and 19 HP at 2200 RPM. It is a 3-cylinder, indirect injection diesel engine with
• The hydraulic system adopts an Italian HANSA closed-loop system. Withstands intensive building projects without sacrificing output.

4. Premium Components

• Delivers premium components such as IMPRO motor, Taifeng plunger pump, and Lufthansa handle joystick system.
• Operation remains carried out via a mixture of pilot control and mechanical control. Pilot Control on This left control handle is used for the overall movement of the machine while the mechanical control handle on the right is for operating the arm.

5. Operator Comfort

• This operator’s position is outfitted with Foam Padding for added comfort. This hood is fitted with Gas Spring Struts so that the machine is better suited to brace for impacts.

6. Ingenious Design

• The STOMP X1300 is outfitted with Piston Pump, which enables an efficient hydraulic flow rate throughout the machine. Out of the three pumps, the two in front are used for controlling overall machine movement, while the one at the back is used for controlling actions (such as the arm and auxiliary machinery).

• Meanwhile, two of the three valves are for controlling the left and right side drive motors. The third valve remains under the mechanical control lever, which controls the actions (of the arm, hydraulic cylinders, and auxiliary machinery).
• This hydraulic oil radiator is placed separate from This engine compartment, so the hydraulic oil temperature is not affected by the heat generated by the engine.
