The TYPHON NAGA 4.0 is a tight-access yet high-capacity mini excavator made for small and urban projects where space and output matter. Its zero-tail swing, 360° rotation, and 33.9 in tail swing radius allow safe, productive operation in compact job sites, while the firm undercarriage, 30° grade ability, and 55° left/right boom swing offer controlled, exact control for daily excavation work. Despite its tight-access size, the NAGA 4.0 delivers exceptional digging resilience with a 6,834 lbf bucket force and 4,092 lbf arm force, which makes it strongly suited for trenching, foundations, and tough soil conditions. Powered by the trustworthy YANMAR 3TNV88F engine, it combines solid output, fuel productivity, and compliance with EPA Tier 4 Final and EU Stage V standards. The operator-friendly cabin adds ISO/SAE selectable controls, a 7-inch touchscreen display for machine monitoring and settings, an adjustable suspension seat, and LED work lights, helping hold comfort, precision, and productivity throughout long working hours.

TYPHON NAGA 4.0 Core Machinery Features:

1. Precision in Compact locations:

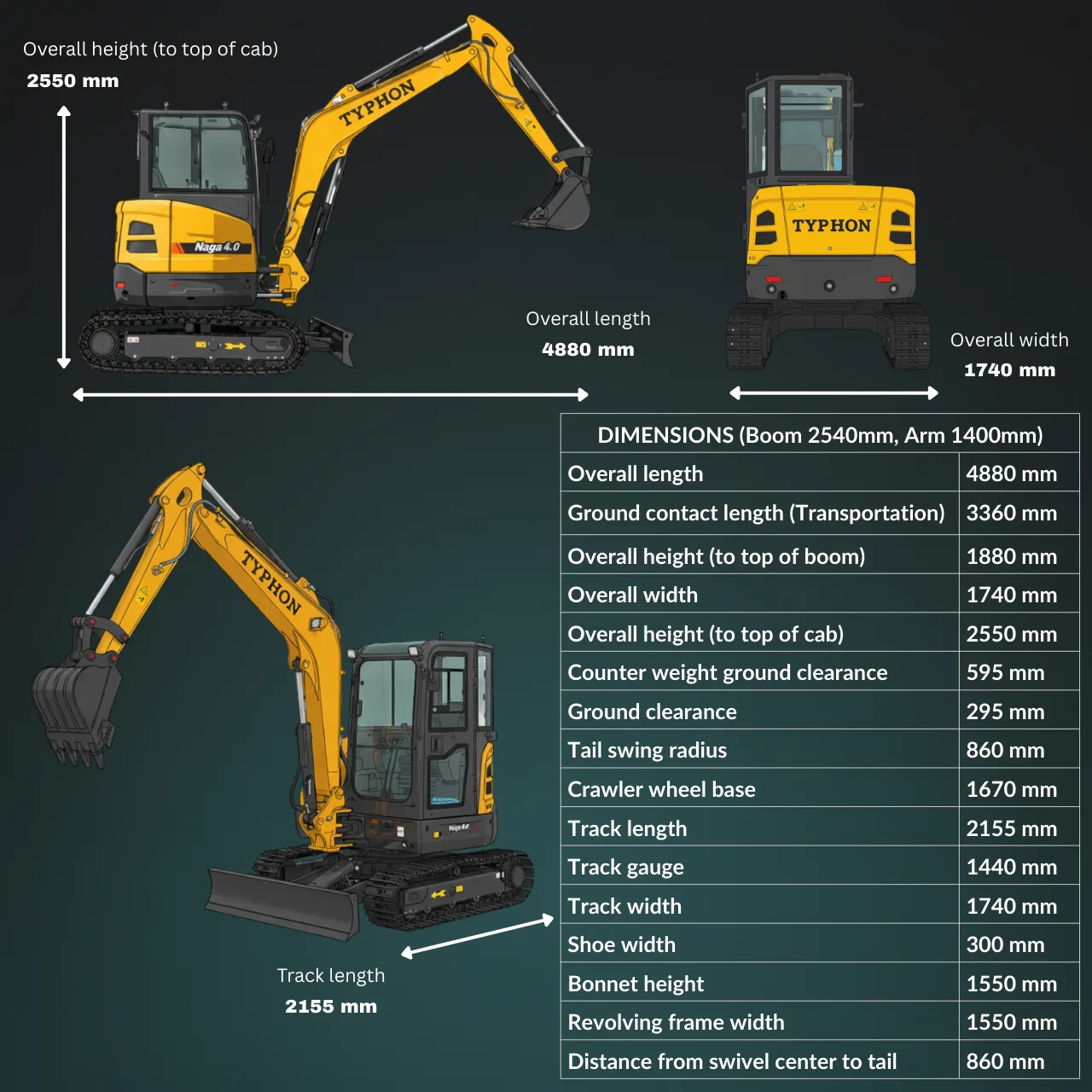

Made for light-duty projects, this tight-access machine offers solid output in tight and urban job sites. With a zero-tail swing design, 360° rotation, and an 33.9 in tail swing radius, it enables secure and productive operation in restricted working locations. Measuring 16.01 ft in overall length, 68.5 in in overall width, and 8.37 ft in overall height (to top of cap), it offers an well-suited balance of size and capability. A 7.07 ft track length, 56.7 in track gauge, and 30° grade ability aid maintain stability on uneven terrain. The 55° left and right boom swing and 0–9 r/min swing speed deliver controlled, precise control for productive daily work.

2. Unstoppable Breakout Force:

the TYPHON NAGA 4.0 series offers raw power that defies its size, made to penetrate the toughest terrain. This unit boasts a massive 6,834 lbf bucket excavation force and an 4,092 lbf arm excavation force, helping hold it cuts through compacted clay or rocky soil with confidence. With a high-capacity 4.24 cu ft bucket capacity with a 25.6 in bucket width, it is optimized for rapid material handling and heavy-service trenching. Fitted with a Three-way stop valve, this combination of high-torque hydraulics and a reinforced digging design helps maintain greater productivity, delivering the “unstoppable” force required for intensive commercial workloads where speed and power are non-negotiable.

3. Heavily Power:

Under the hood of the 4-ton powerhouse sits the world-renowned YANMAR 3TNV88F diesel engine. This three-cylinder, direct-injection engine offers balanced, trustworthy torque and generates 24.4 HP (24.4 HP) at 2200 rpm, while meeting strict EPA Tier 4 Final and Europe Stage V emission standards. With a 0.43 gal displacement, it delivers the high-capacity output needed for grueling daily operations without sacrificing fuel productivity. Made for endurance, the machine adds a large 13.21 gal fuel tank and a 10.57 gal hydraulic oil tank, minimizing downtime, while the advanced cooling system and 1.77 gal engine oil capacity aid maintain peak output under heavy load. Whether traversing the site at Two Travel speed 2.4-2.73 MPH or performing Low-High precision excavation, this Yanmar-powered system offers the relentless resilience, consistent hydraulic flow, productivity, and compliance required for modern industrial workloads.

4. Operator-Friendly:

TYPHON NAGA 4.0 mini excavator is developed for full operator comfort and productivity, with an ergonomic control layout with intuitive, low-effort joysticks and ISO/SAE selectable controls for exact, fatigue-free operation. Operators enjoy a high-visibility jobsite area optional enclosed AC/Heater cabin with an openable front glass window, delivering fresh air when needed. A 7-inch touchscreen display delivers easy access to machine settings, control pattern selection, and output monitoring, while LED alarms and high-intensity LED work lights aid maintain clear visibility and alertness across the entire digging radius. Together, these adds transform challenging projects into a safe, comfortable, and highly productive experience.

5. Accessories Package:

the TYPHON NAGA 4.0 mini excavator machine adds 1 x regular digging excavator Bucket, one implement box, 1 x Fire extinguisher, 1 x Breaking Windows & Cutting Seatbelts and a digital manual with complete instructions.

TYPHON NAGA 4.0 – Key output Summary:

• the ISO / SAE control selection allows This operator to choose the joystick pattern that matches their operating experience.
  • ISO pattern (excavator standard): Left joystick controls Stick/Dipper (In/Out) plus Swing (Left/Right), Right joystick controls Boom (Up/Down) plus Bucket (Curl/Dump).
  • SAE pattern (backhoe pattern): Left joystick controls Boom (Up/Down) plus Swing (Left/Right), Right joystick controls Stick/Dipper (In/Out) plus Bucket (Curl/Dump).
• The YANMAR 3TNV88F diesel engine is a tight-access, 3-cylinder, water-cooled engine known for its dependability, fuel productivity, and compliance using strict emissions regulations like EPA Final Tier 4 and EU Stage V.
• Zero Tail Swing: Rear structure stays within track width during rotation, supporting safe operation in compact plus urban spaces.
• Left & Right Boom Swing (55° / 55°): Allows offset digging along walls, foundations, and road edges without repositioning This machine.
• 360° Upper Structure Swing: Full rotation strengthens digging plus loading productivity while reducing machine movement.
• Two-Speed Travel: Low speed 1.49 MPH feeds high torque for digging and slopes high speed 2.73 MPH allows faster site travel.
• Plunger Pump: Standard auxiliary 25.57 GPM Hydraulic flow circuit assists breakers plus multiple implements.
• Smart Digital Dashboard: 7-inch touchscreen displays engine data, hydraulic status, working hours, fault codes, maintenance reminders, plus control pattern selection.
• Three-way stop valve: These valves are used to add a hydraulic function, such as an auger or thumb clip implement, by rerouting This flow from an existing hydraulic line.
• Large Cabin handling: Enclosed cabin using air conditioning and heater, openable front glass window for ventilation and communication.
• Metal Tracks: highly reinforced, sturdy machines made for harsh conditions like demolition and rocky terrain, providing better traction and longevity than their rubber-tracked counterparts.
